Base Material: PET / PC
Surface: Glossy / Matte Finish
Temperature Resistance: -30ºC-120ºC
Thickness: Membrane: 0.05-0.25mm
Plate: 0.25-2.0mm
Characteristic: High Temperature Resistance,
Wear Resistance, High Stability
Circuit Layer: Silver paste / Carbon paste
Type:
Flat Non Tactile Type
Tympanic Tactile Type
Metal Elastic Type
LED Backlight Type
Electrical
1.Voltage: ≤ 50V (DC)
2.Current: ≤ 100mA
3.Contact resistance: 0.5 - 10 Ω
4.Insulation resistance: ≥ 100M Ω (100V / DC)
5.Substrate withstand voltage: 2KV (DC)
6.Rebound time: ≤ 6ms
7.Loop resistance:≤ 100Ω, or 500Ω-1KΩ according to the needs of users.
8.Insulation ink withstand voltage: 100V / DC
Mechanical
1. Reliability service life: > 1 million times.
2. Standard working force: 100 - 750g.
3. The silver paste line is free of oxidation and impurities
4. silver paste line width ≥ 0.3mm.
5. pin spacing standard 2.54, 2.50, 1.27, 1.25, 1.0, 0.5mm.
6. The bending resistance of tail cable shall be rolled 80 times with d = 10mm steel rod.
7. The adhesion of printing ink should be passed test by Cross-Cut Tester.
Environmental
1. Working temperature: - 20 ºC -+ 70 ºC
2. Storage temperature: - 40 ºC - + 85 ºC, 95% ± 5%
3. Atmospheric pressure: 86 - 106kpa
Application
Our products are widely used in industrial control equipment, household appliances, display instruments, medical equipment, fitness equipment, security equipment, automobile instrumentation, product logo, remote control, electronic scale, intelligent furniture and other fields.
FAQ
Q1. Do you provide free samples?
A1. We can provide samples and charge freight free of charge.
If you have any special sample requirements, please contact us for more details.
Q2. Can the product be produced according to customer requirements?
A2. We can customize according to the required specifications and drawings.

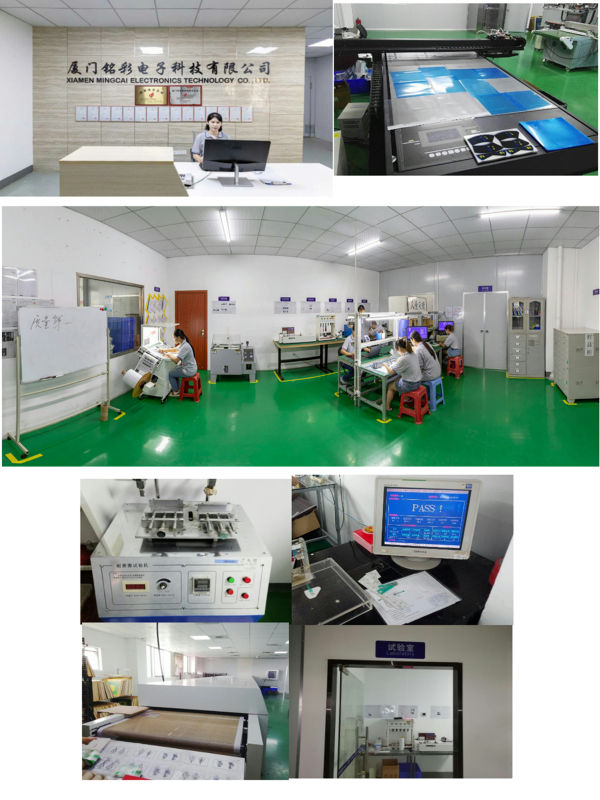

Q3. Is it allowed to visit the factory?
A3. Yes, we always welcome customers to visit our factory.
Q4. How to solve the faults of the equipment during use?
A4. Please email us about the problem of pictures or small videos. I will be better. I will find the problem and solve it.
Q5. Where is your factory?
A5. Our factory address is: 4th floor, No. 308, Tong'an Park, Tong'an Industrial Zone, Xiamen, China.
Q6. What is the quality level of your products?
A6. We have CE, ISO and other certificates.
Q7. What is screen printing?
A7. Screen printing refers to making a screen printing plate with pictures and texts by using the screen as the plate base and the photosensitive plate making method. Using the screen printing plate, the holes in the pictures and texts can pass through the ink, and the holes in the non pictures and texts can not pass through the ink
It can print through the basic principle of ink. When printing, pour ink into one end of the screen printing plate, apply a certain pressure on the ink part of the screen printing plate with a scraper, and move towards the other end of the screen printing plate at the same time
Moving at a uniform speed, the ink is squeezed by the scraper from the mesh of the graphic part to the substrate, so as to produce the graphic design required by the customer.
Its advantages are:
not limited by the size and shape of the substrate
Strong optical rotation resistance
The layout is soft and the printing pressure is small
Flexible printing methods
Strong ink layer coverage
Strong adhesion
Suitable for various types of inks
Suitable for long-term display and expressive advertising outdoors
Q8. Can the color of the product be customized?
A8. Our colors can be customized according to PMS( Pantone matching system) .
Q9. Can the membrane switch be equipped with LED lights?
A9. Yes. Generally, there are monochrome lamps, two-color lamps and three-color lamps. Please contact us for specific requirements.
Q10. What is the thickness of the membrane switch?
A10. Generally 0.9 ~ 1.3mm.
Q11. What are the types of convex keys on the membrane switch panel?
A11. Including round, pan, convex edge, convex key shape, no convex, etc. Please contact us for specific requirements.
Q12. How many layers can the membrane switch be customized?
A12. The general design is 6 layers, but can be customized according to special requirements.
Q13. What is the distance between the tail wires of the membrane switch?
A13. Generally 2.54mm, but there are other specifications of 1mm lamps. Please contact us for specific requirements.
Q14. Do I need to provide drawings?
A14. Yes, we need your drawings.
Theformat of the drawing you can carry the cabinet as below.
PDF file, or AI file, etc.
In addition, you need to provide the circuit drawing.
