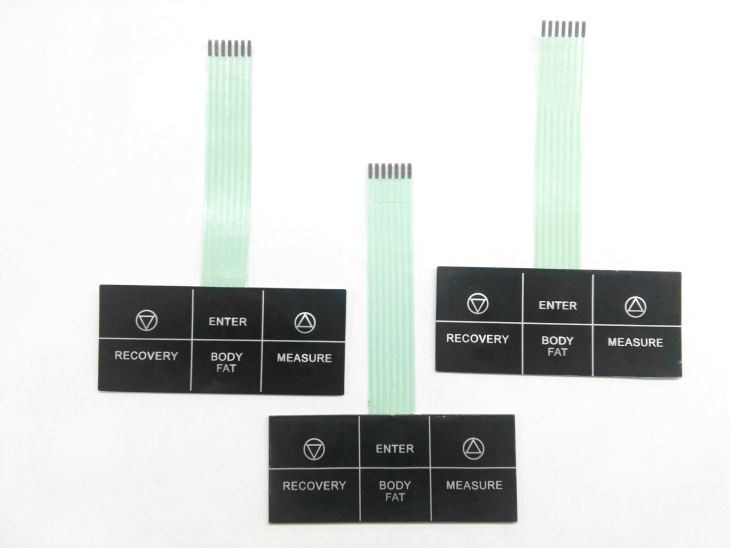

Metal Dome Membrane Switch

Product Introduction

Quick Details:

● Female, male and heat seal connectors are available

● Overlays can be gloss, seml-goloss or matte surface.

● With poly and metal dome membrane switches

● Exported overlay materials PET pr PC.

● Rear adhesive: 3M467MP and 3M468MP

● Environment-friendly ink, ROHS standard

● All membrane switches are 100% functional tested

High temperature and high humidity type are available

● Matching color: Pantone and RAL matching system

Standard tolerance: ±0.10 inches (±0.25mm)

● Long lifespan: >1 million times

Product Parameter

Specifications:

● Wire lead resistance: ＜1Ω/cm

● Rated current: 25-100mA, 0-30V DC

● Operating temperatures: -40°C-70°C

● Rated voltage: ＜50V DC

● Operating humidity: at 40°C, ＜98% RH

● Insulation resistance: ≥100MΩ, 250V DC

● Dome spring back time: ＜5m/sec

● Switch travel: flat type 0.05-0.3mm

● Base material voltage withstand: 1500V DC

● Tactile type: 0.3-1.0mm

● Tail flexibility: any angle within 180°

PRODUCT DISPLAY

Product Feature and Application

Our membrane switches are widely used in:

Prodect Qualification

1, ISO 9001 CERTIFICATE

2, QUALITY POLICY

Deliver, Shipping and Serving

● FOB. CIF, CFR

● EXPRESS, AIR or SEA transportation

FAQ:

1. Q: Can I have a sample order for your product?

A: Yes, we welcome sample order to test and check quality. Mixed sample are acceptable.

2. Q: What about the lead time?

A: Sample needs 3-5days, mass production time needs 1-3 weeks for order quantity more than 10pcs.

3. Q: Do you offer guarantee for the products?

A: Yes we offer 2-5 years warranty to our products.

4. Q: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Quotation Requirement :

1, Material

2, Dimension.

3, Drawings, (CorelDraw, EPS, AutoCAD Dwg, DXF)

4, Color

5, Embossing type: Flat or Emboss

6, Key type: Flat or Tactile key (Tactile key: metal dome or poly dome)

7, Cable: The direction and length

8, connector tail type

9, Window: clear or transparent window

10, Surface: Glossy or matte

11, Rear adhesive: 3M467, 3M468, 3M9080 etc……

Shiping method:

1) By DHL, Fedex, UPS, TNT etc.

2) By sea if it is possible

3) By air
