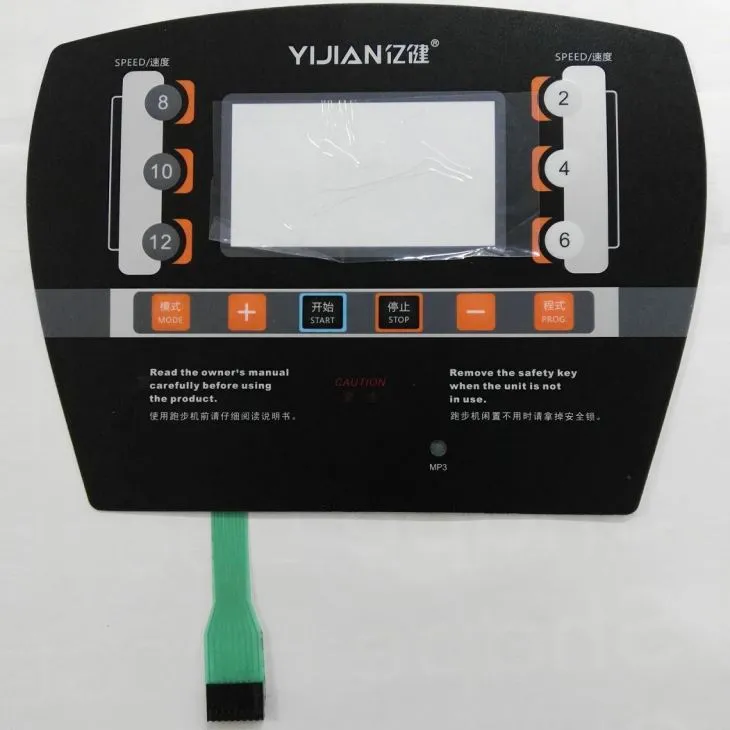

Membrane Switch with Window

Product Introduction

We are the professional manufacturer making all kinds of membrane switches, membrane panel, control stickers, Any design, size and color can be customized according customer requirement.

Female, male and heat seal connectors are available

Overlays can be gloss, seml-goloss or matte surface.

With poly and metal dome membrane switches

Exported overlay materials PET pr PC.

Rear adhesive: 3M467MP and 3M468MP

Environment-friendly ink, ROHS standard

All membrane switches are 100% functional tested

High temperature and high humidity type are available

Matching color: Pantone and RAL matching system

Standard tolerance: ±0.10 inches (±0.25mm)

Long lifespan: >1 million times

Product Parameter

Specifications:

● Wire lead resistance: ＜1Ω/cm

● Rated current: 25-100mA, 0-30V DC

● Operating temperatures: -40°C-70°C

● Rated voltage: ＜50V DC

● Operating humidity: at 40°C, ＜98% RH

● Insulation resistance: ≥100MΩ, 250V DC

● Dome spring back time: ＜5m/sec

● Switch travel: flat type 0.05-0.3mm

● Base material voltage withstand: 1500V DC

● Tactile type: 0.3-1.0mm

● Tail flexibility: any angle within 180°

PRODUCT DISPLAY

Product Feature and Application

Our membrane switches are widely used in:

Prodect Qualification

1, ISO 9001 CERTIFICATE

2, QUALITY POLICY

Deliver, Packaging

● FOB. CIF, CFR

● EXPRESS, AIR or SEA transportation

FAQ:

1. What is the delivery time?

(1) Customized sample: About 7 to 10 days.

(2) Mass production: About 15 days.

2. Can you offer samples?

(1) Stock Samples: If you paid the freight cost, we can provide free samples for you.

(2) Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.

3. What is the terms of payment?

As the client need, we mainly receive trade assurance, TT, west union, PayPal etc.

4. How can i get a sample to check your sample?

After price confirmation, you can require for samples to check our quality.

If you need the samples, we can send you the samples by free (depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

5. what kind of transportation do you offer?

Express such as UPS TNT DHL etc.......

SERVICE

Come to us at the start of your project, and our experienced -based engineers will work alongside you to design customized membrane switches to the exact specifications of your applications. We design and manufacture all of our membrane switches in the CHINA for optimal quality and timely service.

Our engineers have the experience and know-how to handle even the biggest challenges – such as fitting all necessary switch features for optimal functionality in the space-constrained layouts of complex circuit designs.

A full range of other in-house services, including color matching and digital printing, enables you to conform to your customers' brand standards and provide the aesthetics to create the perfect, intuitive user interface.

The Structure and Working Principle of Membrane Switch.

1.Graphic Overlay – PET/PC is usually the material of choice due to its fantastic chemical resistance and flex property . UNIGREAT can do digital printing, screen-printing, or apply both methods to ensure you get the right colors, textures and finish your design requirements.

2.Overlay Adhesive – This adhesive layer stick the graphic overlay to the top circuit layer, and is usually an acrylic adhesive. The material is same with the fourth layer. Only the thickness maybe different according to the actual situation.

3.Top Circuit Layer – The material of this layer is specific. Is is a 0.1mm thickness thermostable PET film printed with conductive silver ink and also dielectric oil, which used for fastening metal domes.

4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so that switch remains normally break until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable PET film printed with conductive silver ink and also dielectric oil. This layer terminates as a flexible tail that serves as an interconnector to controller PCBs or other IC.

6.Rear Adhesive – This adhesive layer bonds the entire membrane switch to the product surface, housing, or to a rigid support panel. UNIGREAT can use the proper adhesive type and thickness to bond your membrane switch to your equipment.
